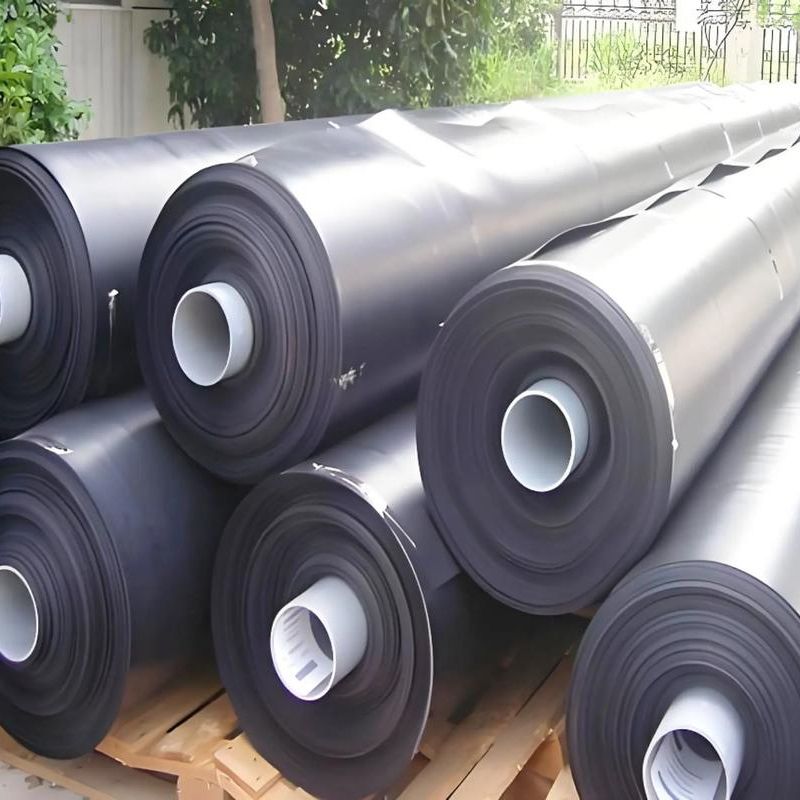

Qhov no impermeable geomembrane muab ib tug tsis tshua muaj permeability barrier, nrog ib tug hydraulic conductivity coefficient tsawg tshaj li los yog sib npaug zos rau 10⁻¹² cm / s, zoo tiv thaiv cov kua migration nyob rau hauv lub membrane txheej.
Nws yog tsim los cais cov dej, dej khib nyiab, thiab tshuaj lom neeg kev daws teeb meem, ua rau nws yog ib qho tseem ceeb geosynthetic cov ntaub ntawv uas siv nyob rau hauv ib puag ncig thiab civil engineering daim ntaub ntawv.
Lub membrane yog tsim los ntawm high-density polyethylene (HDPE) los yog tsawg- ntom polyethylene (LDPE), ob qho tib si yog cov khoom siv thermoplastic uas tuaj yeem koom nrog siv kub- huab cua vuam tshuab los ua siab - lub zog, nruam seams.
Lub kaw lus muaj kev ua haujlwm ntev -lub sij hawm ua haujlwm tsis muaj corrosion, tsis muaj roj ntsha degradation, thiab tshuaj tiv thaiv zoo heev.
Cov ntawv thov ib txwm muaj xws li cov chaw pov tseg, cov dej khib nyiab pov tseg, cov chaw cia khoom mining tailings, thiab cov dej num engineering.
Kub Resistance thiab Mechanical Performance
HDPE geomembrane tswj kev ua haujlwm hauv qhov kub thiab txias.
Nws tseem siv tau ntawm qhov kub thiab txias li -60℃thiab tiv taus qhov kub siab txog li 80 degree.
Cov khoom muab lub zog tensile Ntau dua los yog sib npaug ntawm 25 MPa thiab elongation ntawm kev tawg Ntau dua lossis sib npaug li 600%, tso cai rau nws kom haum rau hauv av tseem ceeb thiab deformation yam tsis muaj kev ua haujlwm.
UV stabilizers thiab antioxidants tau muab tso rau hauv cov qauv tsim los txhim kho kev tiv thaiv rau hnub ci hluav taws xob thiab kev laus ib puag ncig.
Lub neej ua haujlwm tsim tau tshaj li 50 xyoo hauv daim ntawv thov faus thiab kwv yees li 20 xyoo nyob rau hauv cov xwm txheej raug.
Installation Efficiency thiab System Design
Lub geomembrane muaj nyob rau hauv dav yob hom ntawm 2 m, 4 m, thiab 6 m widths, txo qhov seams thiab txhim kho installation efficiency.
Txheem thickness ranges ntawm 0.3 hli mus rau 2.0 hli, nrog yob ntev ntawm 50 m los yog 100 m nyob ntawm specification.
Peb lub Hoobkas muaj ntau tshaj 12 xyoos ntawm kev tsim khoom hauv cov ntaub ntawv geosynthetic, ua haujlwm ISO9001- tau ntawv pov thawj cov tshuab ua haujlwm nrog kev kuaj hauv tsev.
Peb yog cov chaw tsim khoom tshwj xeeb thiab kev tsim kho tshiab- taw qhia cov chaw tsim khoom thiab tau muab cov khoom lag luam rau cov tuam txhab lag luam loj xws li Tuam Tshoj Railway thiab Tuam Tshoj Kev Tsim Kho.
Peb muab cov kev pabcuam OEM, kuaj dawb, thib peb-kev pabcuam kuaj xyuas tog, thiab 1-xyoo lav. Txhua yob raug tshuaj xyuas tag nrho ua ntej ua zaub mov xa tuaj.
Qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog 100 square meters ib specification.
Technical Parameters
|
Parameter |
Tus nqi |
|
Khoom Code |
JRJH-TGM-021 |
|
Khoom siv |
HDPE / LPE |
|
Thickness |
0.3mm-2.0 hli |
|
Dav |
2 m / 4 m / 6 m |
|
Roll Length |
50 m / 100 m |
|
Hydraulic conductivity |
Tsawg dua los yog sib npaug li 10⁻¹² cm/s |
|
Tensile zog (HDPE) |
Ntau dua lossis sib npaug li 25 MPa |
|
Elongation ntawm Break |
Ntau dua lossis sib npaug li 600% |
|
Tsawg kub ua hauj |
-60 degree |
|
Kub Kub Resistance |
80 degree |
|
Kev Pabcuam Lub Neej |
>50 xyoo (daim ntawv thov faus) |
|
MOQ |
100 m² ib specification |
